384 v force for RD mods (no cyl cutting required)

[m in sc]

Pictorial how to mod 384 v force reeds to fit in to an rd motor w out adding a reed spacer or grinding intake.

these will go right in w no other mods to the motor . the upside is it has double the reeds, and they are 1 pc. Ideal for running stock up to 30mm carbs.

stock:

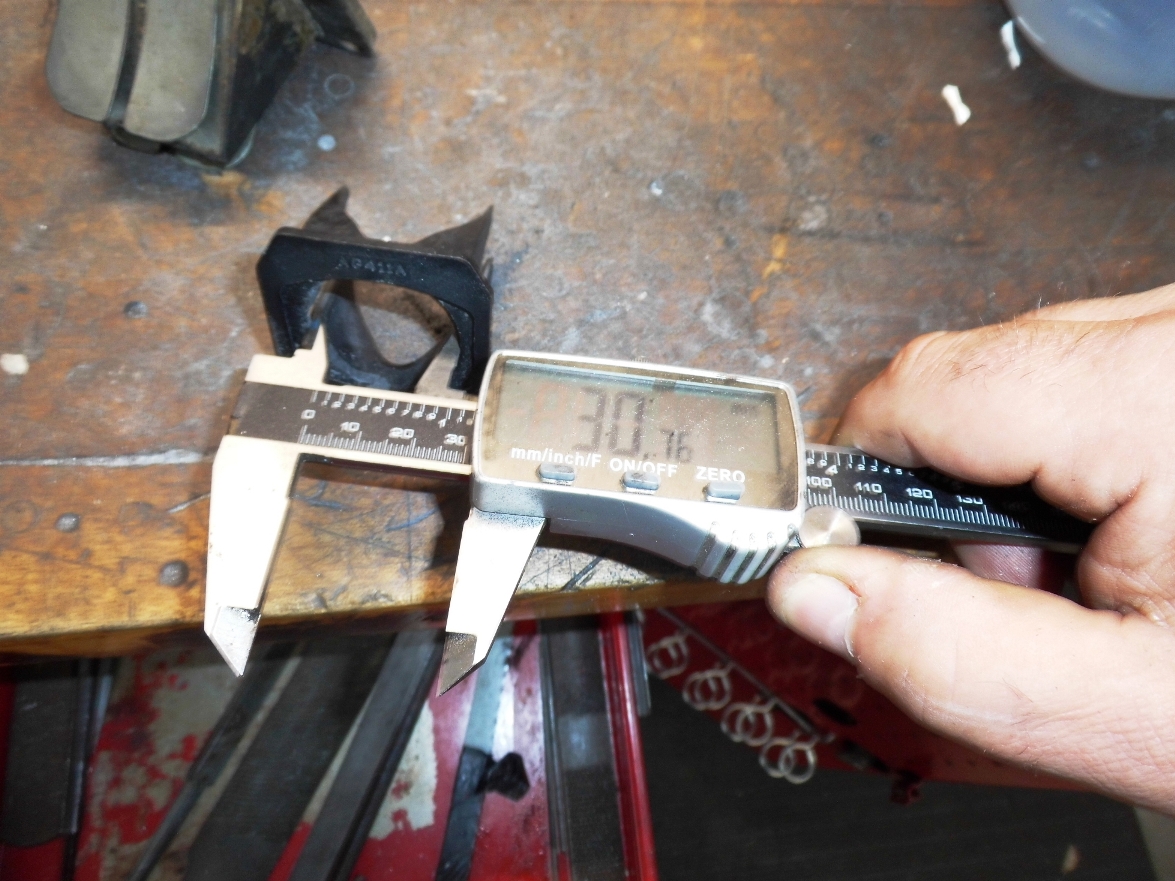

reed petal width:


depth:



v force:


v force reed width:



bolt pattern not fitting:



drill holes , step the drilling . start with 7mm, then open up to 8.5mm Minimally, up to 9mm.

slow drill, go easy.





all drilled out:



open up the left and right ID of the reed stuffer on the v force with a round file. they are a bit small on the sides, you need to remove about 1/2-1mm per side.




install like stock unit, but use gasket between reed and intake as well. will need ot trim ears off  astock intake if you have one.

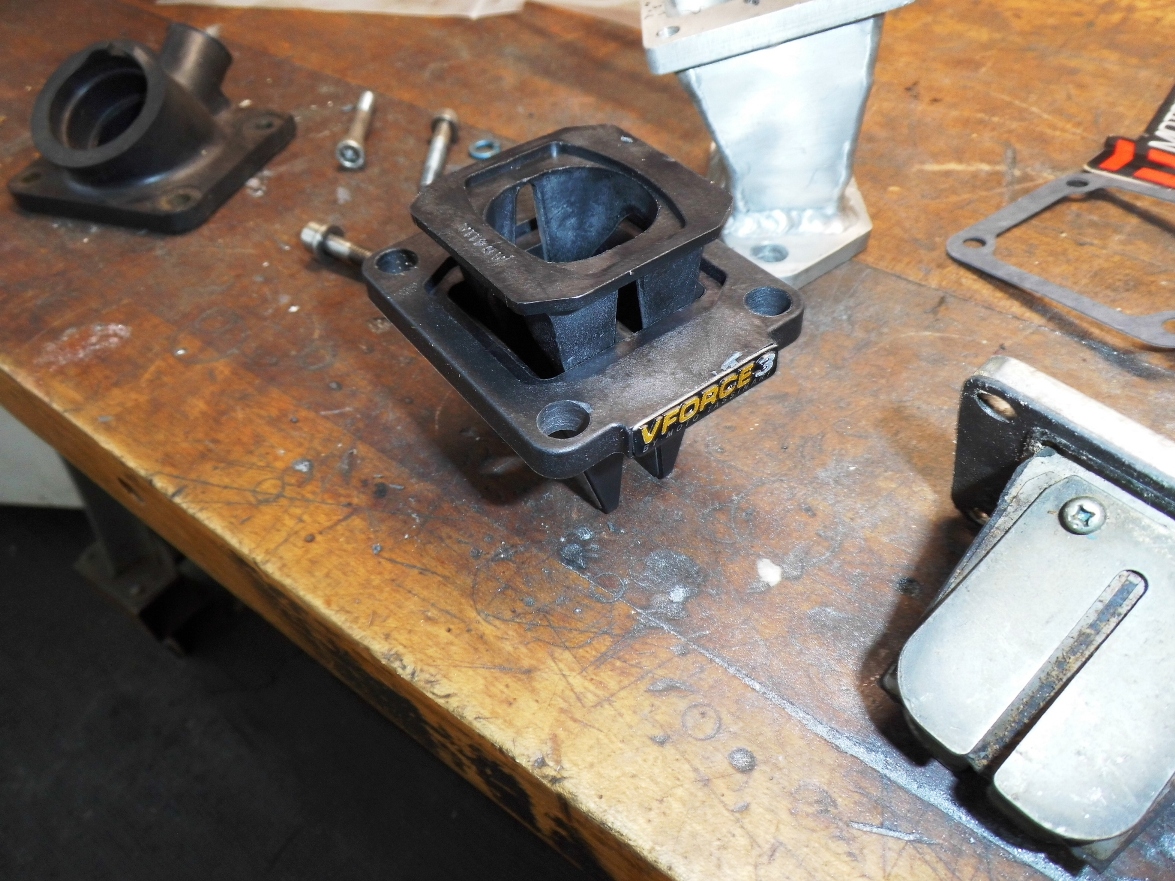

done. 4 petal c/f reeds.

[Hawaii-Mike]

Thanks Mark!

[pdxjim]

Should mention UPP manifolds are flat-backed without ears, and go straight on without trimming.

I had a tough time getting trimmed stock manifolds to seal.

[m in sc]

true. I haven't had an issue personally, but i finish them off on a block w sandpaper. (if i use the stock ones). the upps are def better way to go though.

[85RZwade]

Would you recommend that tack life caliper? I love the big display, and I see they're inexpensive

[m in sc]

the caliper has been pretty good overall

[2steve]

What noticeable change(s) in performance?
Or, do you need a certain modification to see a real benefit?

[m in sc]

honestly, just better transitions and crisper response
